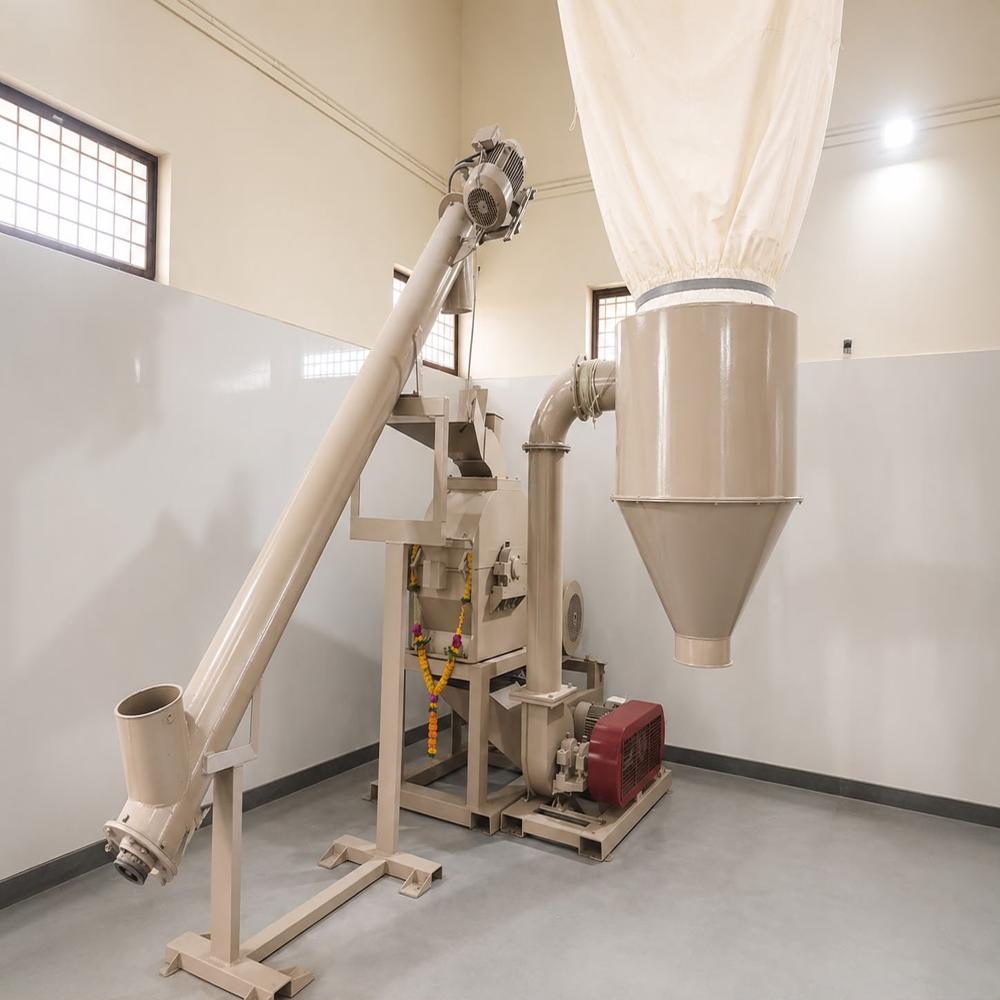

Maize grinding machine

Maize grinding machine Price And Quantity

• Minimum Order Quantity 1 Unit
• Price 270000.0 INR/Unit

Maize grinding machine Product Specifications

• Weight (kg) Approx. 600-1200 kg
• Dimension (L*W*H) As per floor space: approx. 3 m x 2 m x 2.5 m
• General Use Maize grinding and processing
• Automatic Yes/Optional
• Capacity 200 kg/hr to 1500 kg/hr
• Rotation Unidirectional
• Voltage 380-440V, 3 Phase
• Grinding Length Varies by model, approx. 200-500 mm
• Power 5 HP to 20 HP (as per capacity)
• Material Mild Steel/SS as required
• Fuel Tank Capacity N/A - Electric powered
• CNC Or Not Not CNC
• Feature High efficiency, robust construction, dust free operation
• Table Slide Way Hardened steel guideways
• Computerized No
• Color Beige/Customizable
• Grinding Wheel Size Customizable, as per requirements
• Product Type Maize Grinding Machine
• Table Size Custom built for production capacity
• Model Varies (Customized per production requirement)
• Floor Space 3 m x 2 m x 2.5 m (LxWxH)
• Grinding Wheel Speed 1440 RPM (approx.)
• Type Automatic/Semi-Automatic
• Spindle Speed Variable, up to 1440 RPM
• Control System Manual/Automatic (Optional)

• Input Material Dry maize, corn cobs (pre-cleaned)
• Noise Level Less than 80 dB
• Dust Collection Cyclone separator with bag filter
• Applications Cattle feed, flour mills, agro processing units
• Feeding System Automatic hopper & conveyor system
• Pulverizer Mechanism Hammer type/pin mill (depending on application)
• After Sales Support 24/7 remote & onsite support
• Installation Service Available on request
• Working Speed 300-1000 kg/hr (depends on model)
• Safety Features Overload protection, emergency stop switch
