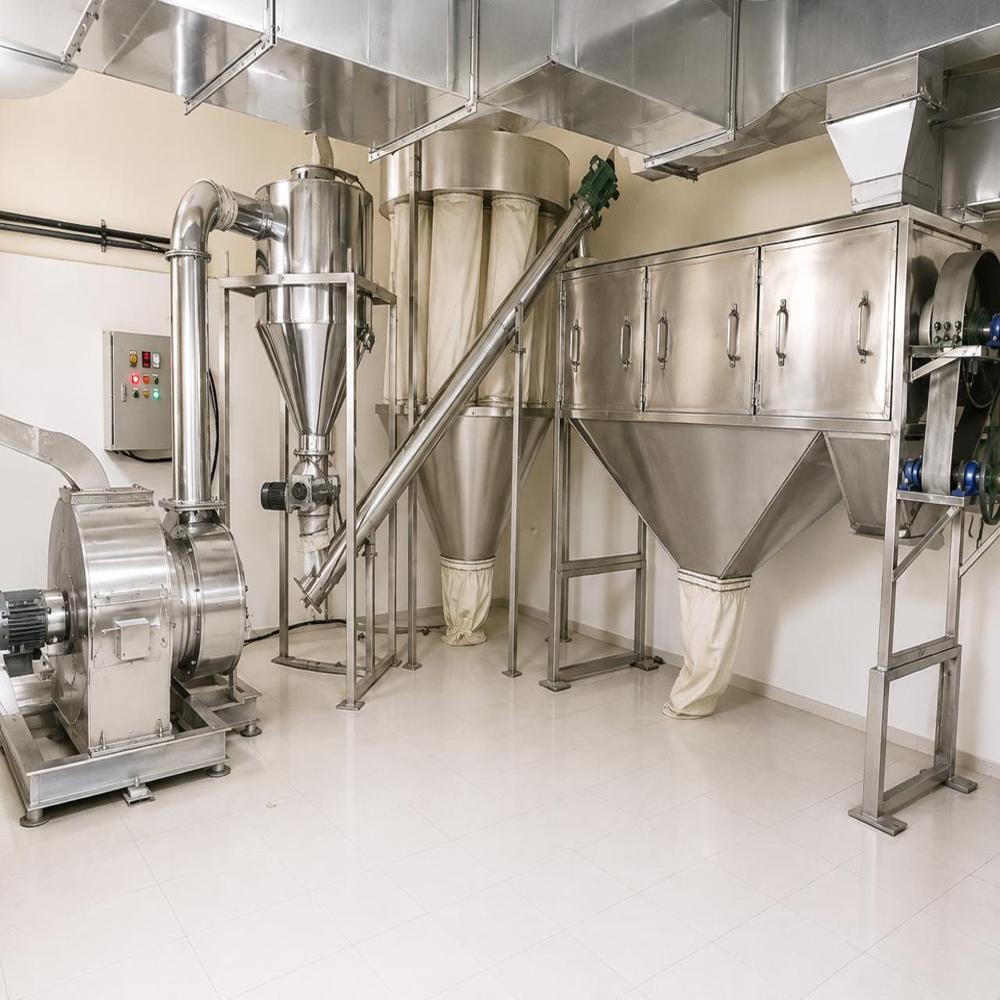

Turmeric plant 500kg/hr in pure stainless steel

Turmeric plant 500kg/hr in pure stainless steel Price And Quantity

• Minimum Order Quantity 1 Piece
• Price 270000.0 INR/Piece

Turmeric plant 500kg/hr in pure stainless steel Product Specifications

• General Use Turmeric powder manufacturing and processing
• CNC Or Not Not CNC
• Product Type Automatic Turmeric Grinding & Processing Plant
• Control System PLC based automatic control panel
• Floor Space Approx. 10m x 4m (depends on module arrangement)
• Grinding Wheel Speed High-speed, up to 2880 RPM
• Spindle Speed Fixed, as per grinding machine - up to 2880 RPM
• Rotation High-speed rotor/impactor in grinding section
• Model Industrial-SS-Turmeric-500KG
• Weight (kg) Approx. 2800 - 3500 kg (varies with design configuration)
• Dimension (L*W*H) Approx. 10000 x 4000 x 5000 mm
• Type Industrial spice grinding and processing plant
• Power 25-40 HP (combined for plant operations)
• Capacity 500 kg/hr
• Voltage 380-440V, 3 Phase, 50 Hz
• Color Silver (natural stainless steel finish)
• Fuel Tank Capacity Electric-powered system, NA
• Grinding Length Industrial turmeric root batch length - custom as per plant
• Table Size Integrated system design - NA
• Material 304/316 Pure Stainless Steel
• Computerized No
• Feature Corrosion resistant, easy cleaning, continuous operation, dust-free operation
• Automatic Yes, fully automatic
• Grinding Wheel Size Specialized turmeric grinding chamber, size specific to plant design

• Dust Collection Integrated cyclone and bag filter system
• Feed Size Up to 60 mm turmeric root pieces
• Installation & Commissioning Provided with complete onsite support
• Noise Level Below 85 dB(A)
• End Product Fineness Up to 80-100 mesh (customizable as needed)
• Construction Completely modular with cyclone separator, dust collector, and screw conveyor
• Cooling System Optional air or water cooling for grinding chamber
• Process Output Fine powder ready for packing and further processing
• Input Voltage Range 360-460V tolerance
• Application Suited for food industry, herbal, pharmaceuticals, and spice processing units
• Accessories Supplied Control panel, connecting ducts, hopper, cyclone separator, filter bags
• Maintenance Low maintenance, easy access service points
• Working Speed 500 kg/hr output (maximal sustained rate)
• Automation Grade Fully automatic with manual override options
• Operator Requirement 1-2 operators for loading/unloading and monitoring
• Safety Features Emergency stop, overload protection, grounded enclosures
